FlipFix Metal Door Picture Frame Access Panel - 2hr Fire Rated
Product details
FlipFix Fire Rated Access Panel with Metal Door Picture Frame
Dispatched same day for next working day (Mon-Thur) delivery if ordered before 2:30pm. 12pm on Friday.
The Fire Rated Metal Door Picture Frame is a dual purpose 2 hours fire rated as standard with a FlipFix mechanism for easy installation.
Manufacture

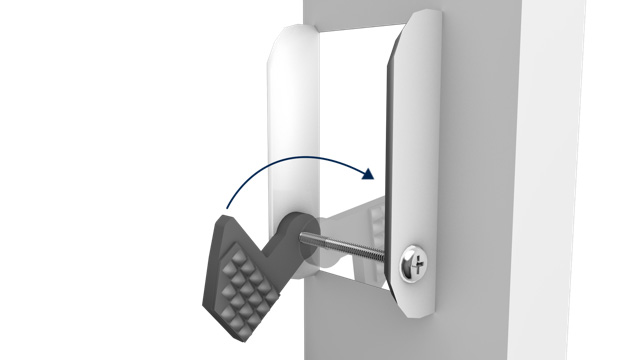

This panel features a 25mm picture frame surround metal door for retrofitting into an existing wall or ceiling. It is fire rated with both wall and ceiling usages being certified and tested with a fire rating of up to 2 hours according to BS 476: Part 22: 1987. The FlipFix mechanism allows quick fixing without the need of any additional screws or fixings.

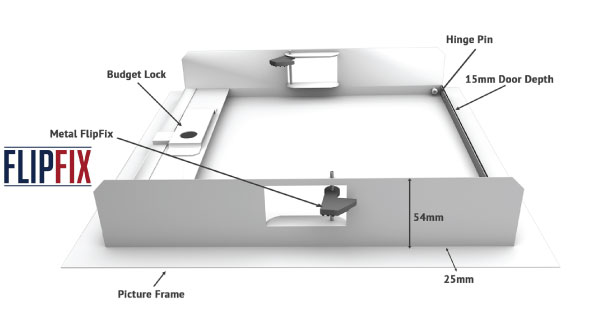

The flush metal door is fully demountable and uses a screw pin hinge which can be locked with a Budget Lock and a Plastic Tee Key. The door and frame is polyester powder coated in white RAL 9010, 30% Gloss. Manufactured from 0.9mm Zintec Steel. The panel depth is 54mm with a 25mm picture frame and 15mm Door depth.
Access Panel Sizes
Please note: Structural opening needs to be 5mm larger then the listed size.
| Panel Sizes | Structural Opening |
|---|---|
| 150 x 150 | 155 x 155 |
| 200 x 200 | 205 x 205 |
| 300 x 300 | 305 x 305 |
| 450 x 450 | 455 x 455 |
| 550 x 550 | 555 x 555 |
| 600 x 300 | 605 x 305 |
| 600 x 600 | 605 x 605 |
