ZIP Retractable Ladder - Up to 3390mm
Product details

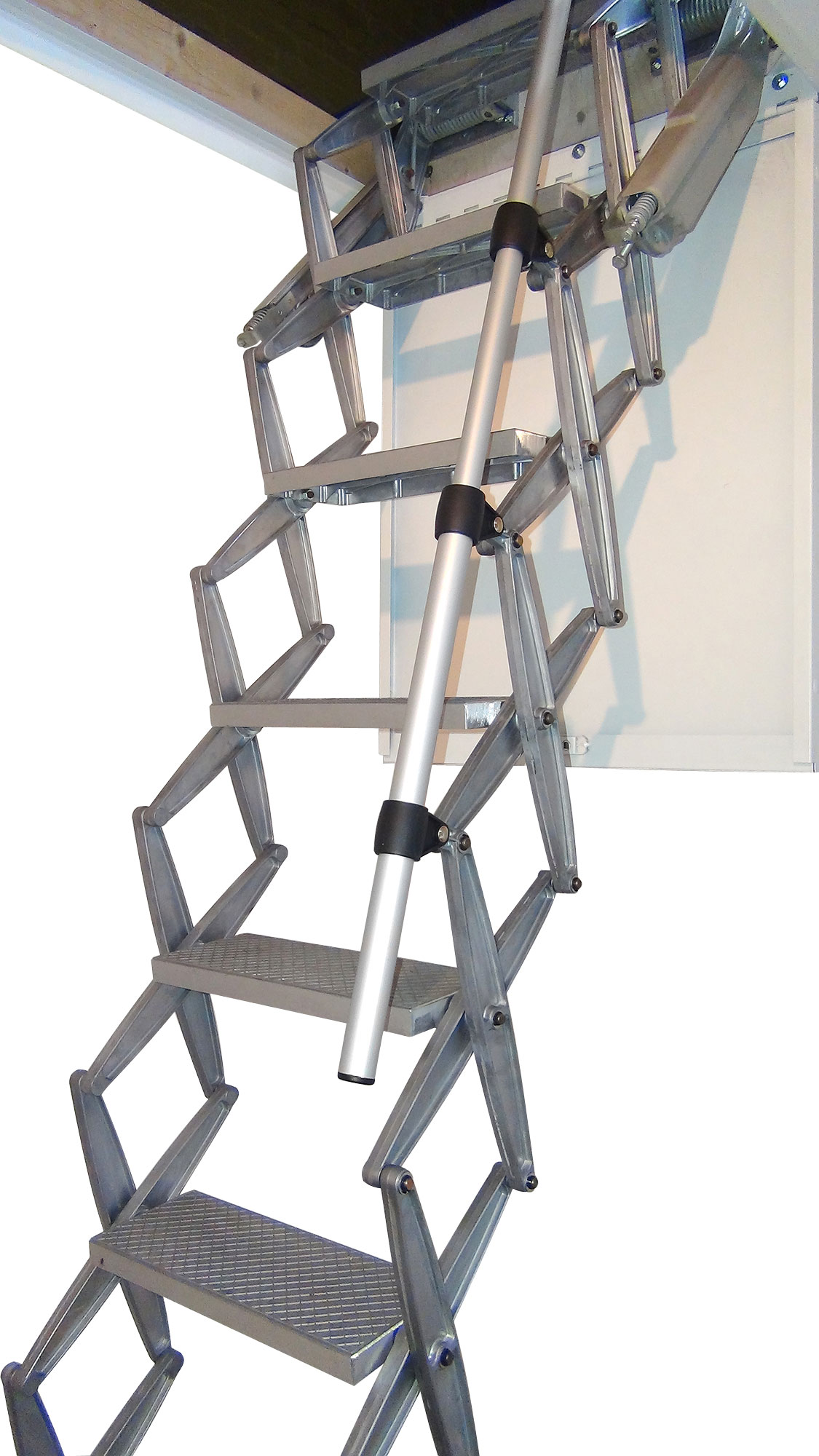

ZIP Retractable Ladder - Up To 3390mm
Dispatched same day for next day delivery if ordered before 1pm.

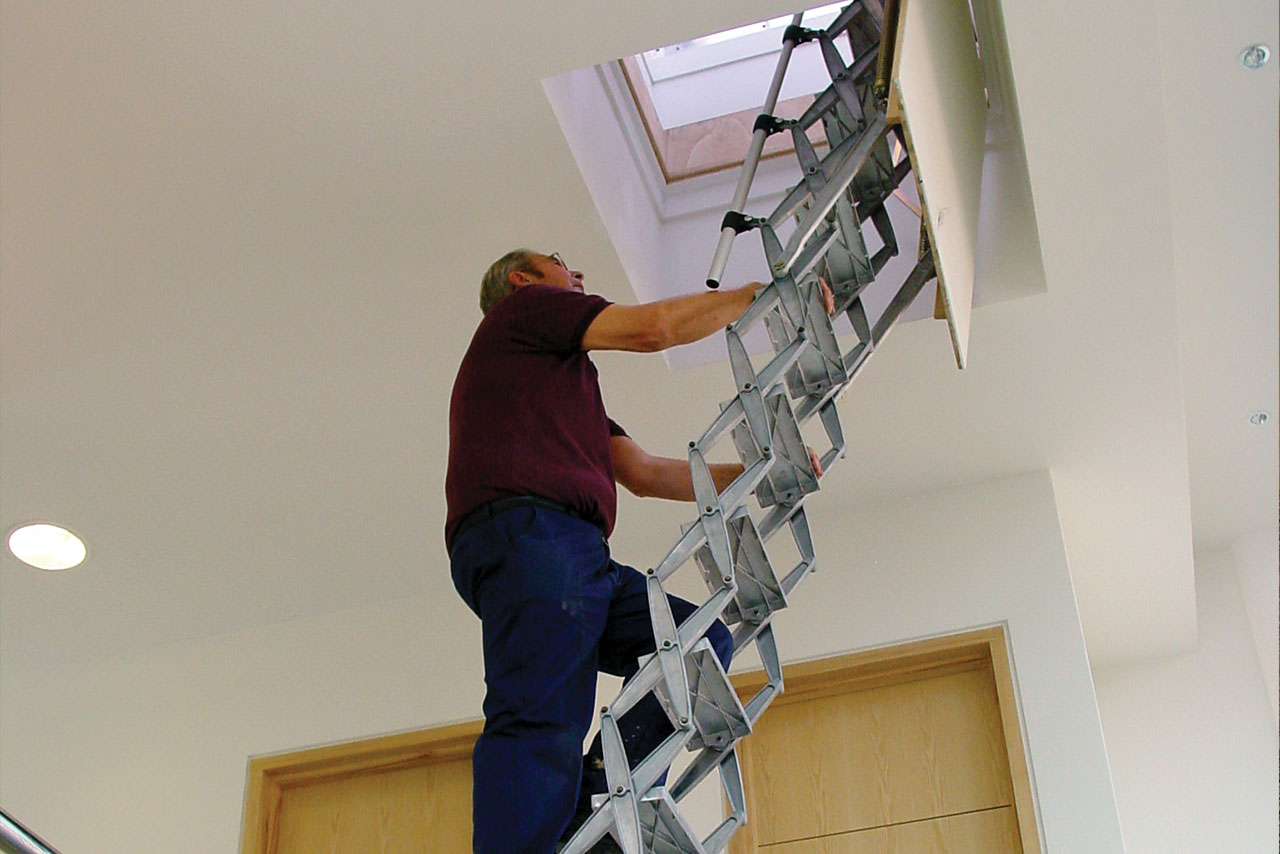

To suit an underside of headboard height of up to 3390 suitable for use as a fold out loft ladder and also in installation to vertical walls. The retractable ladder is fixed to a 600 x 200mm plywood back board, which is simply screwed to an appropriate surface in the location required.
An adjustable counterbalance spring is incorporated into the pivot bracket to ensure that the stairway can be raised a lowered smoothly with minimum effort. Requires a minimum aperture size of 650 x 900mm.

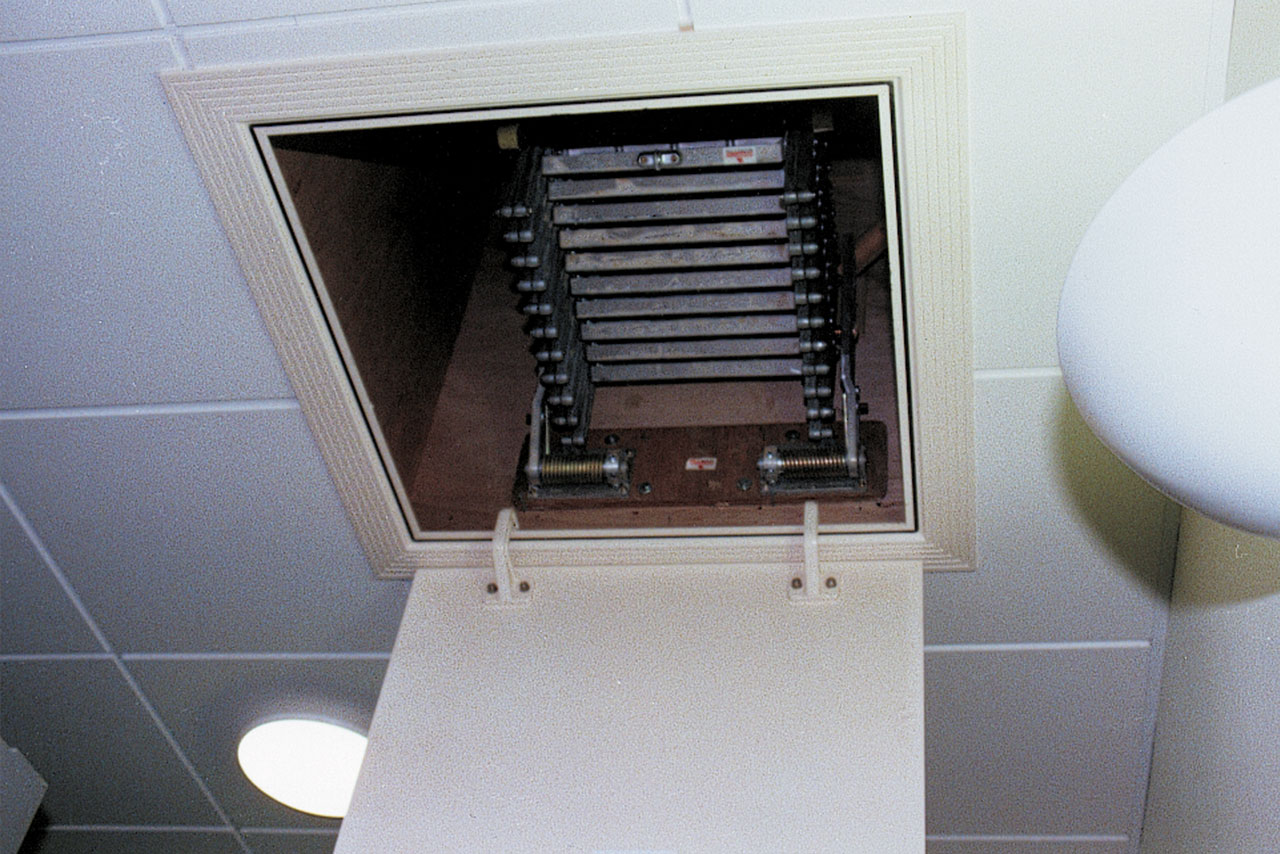

Note: Min aperture size allows clearance for a Jakdor ceiling panel and the telescopic handrail.
- Free delivery
- Wide anti-slip treads
- Each tread Supports a load of 200Kg/m2
- One side telescopic handrail
- Certified to EN14975
| Model | Ceiling Height | Mean Aperture Width x Length |
DIM X* (mm) | No. of Treads |
Weight | |
|---|---|---|---|---|---|---|

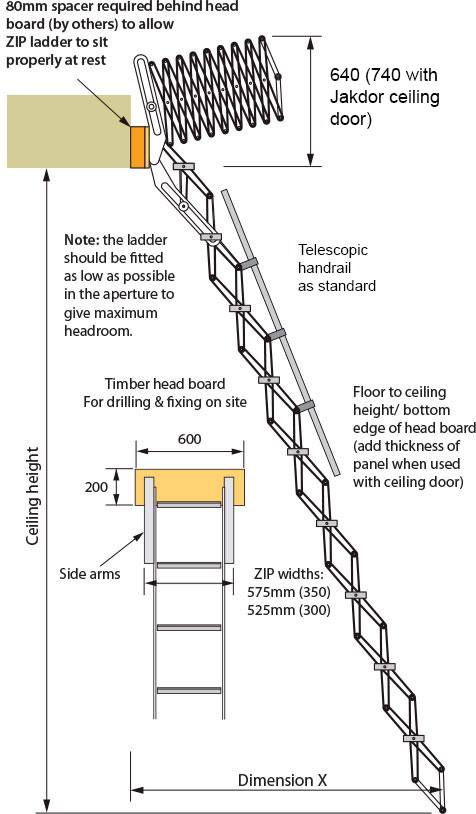

| * Floor space - please refer to the drawing | ||||||
| ZIP 4 | Up to 2500mm | 650 x 900 | 1210-1310 | 9 | 28kg | |
| ZIP 5 | 2501 to 2790mm | 650 x 900 | 1310-1410 | 10 | 30kg | |
| ZIP 6 | 2791 to 3090mm | 650 x 900 | 1410-1510 | 11 | 32kg | |
| ZIP 7 | 3091 to 3390mm | 650 x 950 | 1510-1610 | 12 | 34kg | |
