Fire Rated Ceiling and Wall Access Door

Dispatched same day for next working day (Mon-Thur) delivery if ordered before 2:30pm. 12pm on Friday.

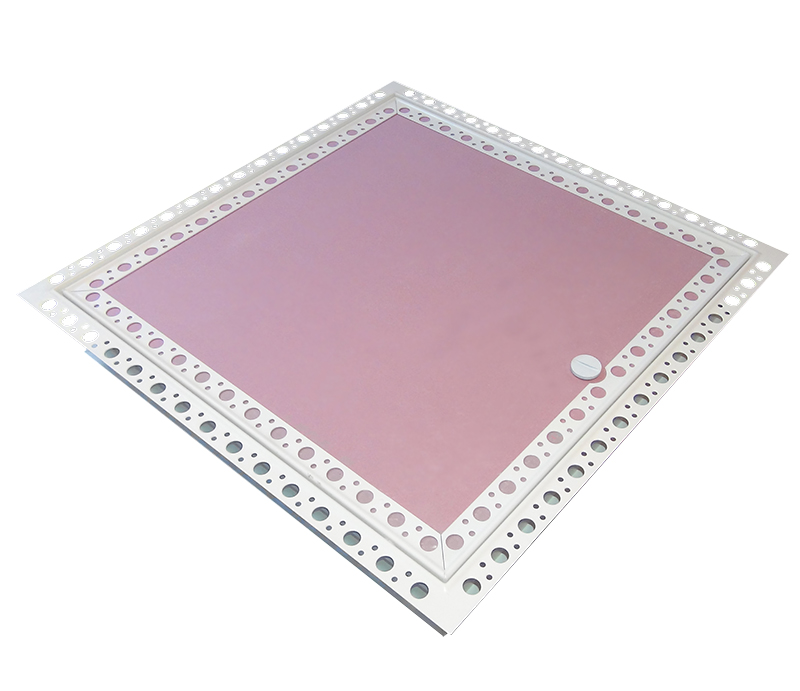

Fire rated interior Plasterboard door beaded frames are designed to fit into jointless plasterboard walls, wall partitions and suspended ceiling systems. The beaded frame allows skim plastering as well as tape and jointing on site for a concealed frameless finish.

Manufacture

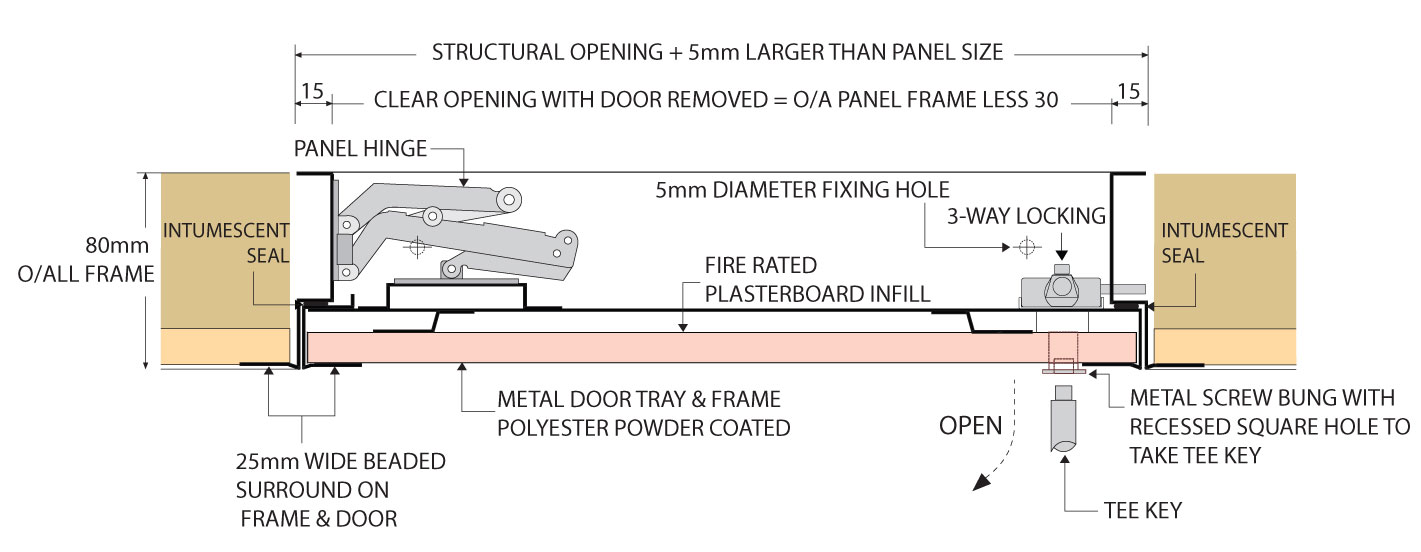

Fire rated doors are manufactured from 1.2mm and 1.0mm zintec steel with a 25mm concealed beaded frame. Finished in white RAL 9010 awith 20% gloss and opens with chrome plated cupboard style hinge which is secured using a three way lock with a steel screw in bung.

Fire Rated

The CAD/WAP.A/FR60/120 access panel has been successfully tested to give up to 1 hour integrity in a ceiling system and 2 hours for a wall system. All in accordance with BSEN 1634-1:2008 and BSEN 1363-1:1988. Fire rated access panels have intumescent strips fitted on the frames - please DO NOT interfere with these seals.

Zintec steel metal door and 25mm concealed beaded frame surround.
Supplied with a three way lock and a Metal Tee Key.
Door and Frame Powder Coated in RAL 9010 White, 20% Gloss.
Can be used as a wall access panel OR a ceiling access panel.
Manufactured from non-combustible materials.

Access Panel Sizes

Our standard sizes are available for next day delivery (if ordered before 12pm). Please note the structural opening needs to be 5mm larger then the overall panel size. We also offer bespoke sizes, please contact us for a quote.

Sizes	Structural Opening	Opening with door removed	Hinged
300 x 300	305 x 305	276 x 276
450 x 450	455 x 455	426 x 426
550 x 550	555 x 555	526 x 526
600 x 600	605 x 605	576 x 576
600 x 900	605 x 905	576 x 876	Hinged Long Side
600 x 1200	605 x 1205	576 x 1176	Hinged Long Side

Locking Options

The standard stocked locking option is a three way lock with turn operated metal tee key and steel screw in cap.

Available locking options

Three-way locking STANDARD
