Plasterboard Faced Door with Beaded Frame

Ceiling and Wall Access Door

Dispatched same day for next working day (Mon-Thur) delivery if ordered before 2:30pm. 12pm on Friday.

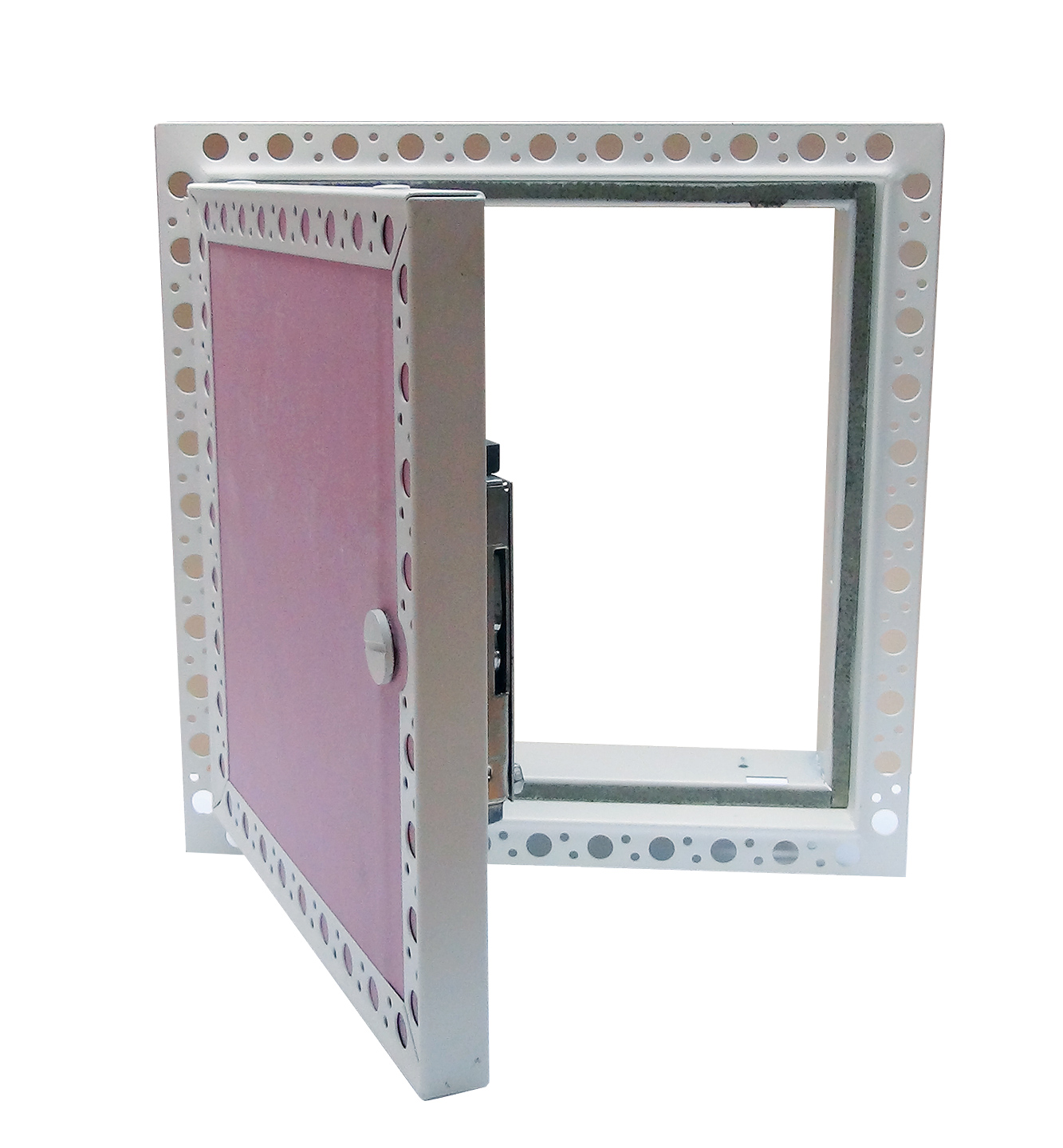

Interior Plasterboard door beaded frame are designed to fit into jointless plasterboard walls, wall partitions and suspended ceiling systems. The beaded frame allows skim plastering as well as tape and jointing on site for a concealed frameless finish.

Manufacture

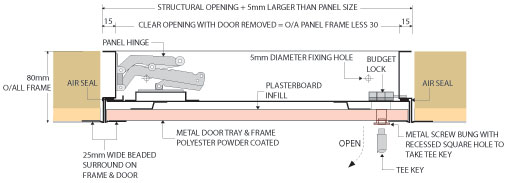

Metal panels are manufactured from 1.2mm Zintec steel and finished in a white powder coating (RAL 9010 20% gloss). The 1.0mm thick flush metal door has a 25mm concealed beaded frame and a chrome plated cupboard style hinge which is secured using a budget lock with a steel screw in bung.

Available in a range of standard sizes up to 600 x 1200. We also offer custom manufacturing where the panel can be made to almost any specification, including air tight, acoustic rated, or even double leaf with a wide range of locking options. Call our sales team for more information.

• Zintec steel metal door and 25mm concealed beaded frame surround.
• Supplied with a Budget Lock and a Plastic Tee Key.
• Door and Frame Powder Coated in RAL 9010 White, 20% Gloss.
• Can be used as a wall access panel OR a ceiling access panel.
• Manufactured from non-combustible materials.

Access Panel Sizes

Our standard sizes are available for next day delivery (if ordered before 12pm). Please note the structural opening needs to be 5mm larger then the overall panel size. We also offer bespoke sizes, please contact us for a quote.

Sizes	Structural Opening	Opening with door removed	Hinged
300 x 300	305 x 305	276 x 276
450 x 450	455 x 455	426 x 426
550 x 550	555 x 555	526 x 526
600 x 600	605 x 605	576 x 576
600 x 900	605 x 905	576 x 876	Hinged Long Side
600 x 1200	605 x 1205	576 x 1176	Hinged Long Side

Locking Options

The standard stocked locking option is the budget lock.

Available locking options

Budget Lock STANDARD

Three-way locking
