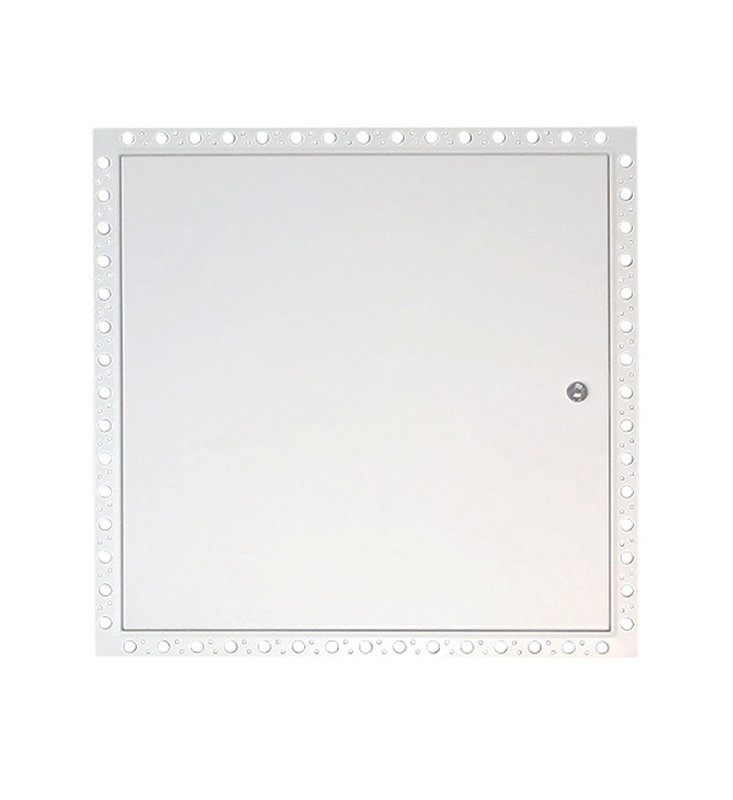

Budget Metal Door and Beaded Frame
Product details
Ceiling and Wall Access Door
Dispatched same day for next working day (Mon-Thur) if ordered before 2:30pm. 12pm on Friday
Our beaded frames are designed to be screw fixed directly into a clear structural opening. The 25mm concealed beaded frame is ideal for tape and jointing / skimming on site. This provides a flush, discrete panel with no visible frame. These panels are intended for internal use only and are suitable for drywall, gypsum and plastered wall or ceiling finish.
Manufacture
Budget metal panels are manufactured from 1mm Zintec steel and finished in a white powder coating (RAL 9010 20% gloss). The flush metal door has a 25mm concealed beaded Frame and a pin hinge which is secured using a mini quarter turn lock.
Available in a range of standard sizes up to 600 x 600. We also offer custom manufacturing where the panel can be made to almost any specification, including air tight, acoustic rated, or even double leaf with a wide range of locking options. Call our sales team for more information.
- Zintec steel metal door and 25mm beaded Frame.
- Supplied with a quarter turn lock and Key.
- Door and Frame Powder Coated in RAL 9010 White, 20% Gloss.
- Can be used as a wall access panel OR a ceiling access panel.
- Manufactured from non-combustible materials.
Access Panels Sizes

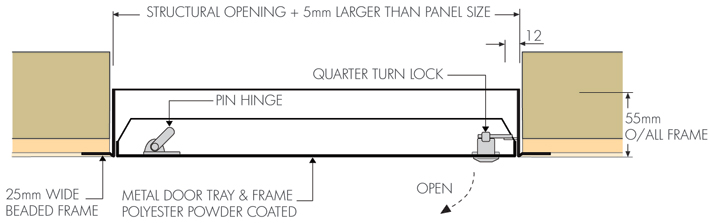

Our standard sizes are available for next day delivery (if ordered before 12pm). Please note the structural opening needs to be 5mm larger then the overall panel size as detailed below. We also offer bespoke sizes, please contact us for a quote.
| Panel Dimension | Structural Opening | Opening with door removed |
|---|---|---|
| 150 x 150 | 155 x 155 | 138 x 138 |
| 200 x 200 | 205 x 205 | 188 x 188 |
| 300 x 300 | 305 x 305 | 288 x 288 |
| 450 x 450 | 455 x 455 | 438 x 438 |
| 550 x 550 | 555 x 555 | 538 x 538 |
| 600 x 600 | 605 x 605 | 588 x 588 |
Locking Options

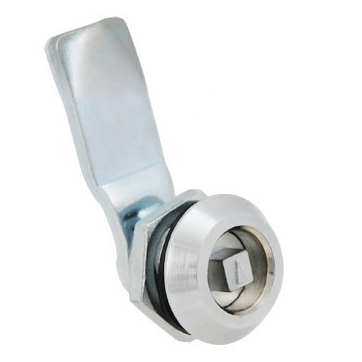

The standard stocked locking option is a mini quarter turn lock.
Available locking options
Quarter turn lock STANDARD
