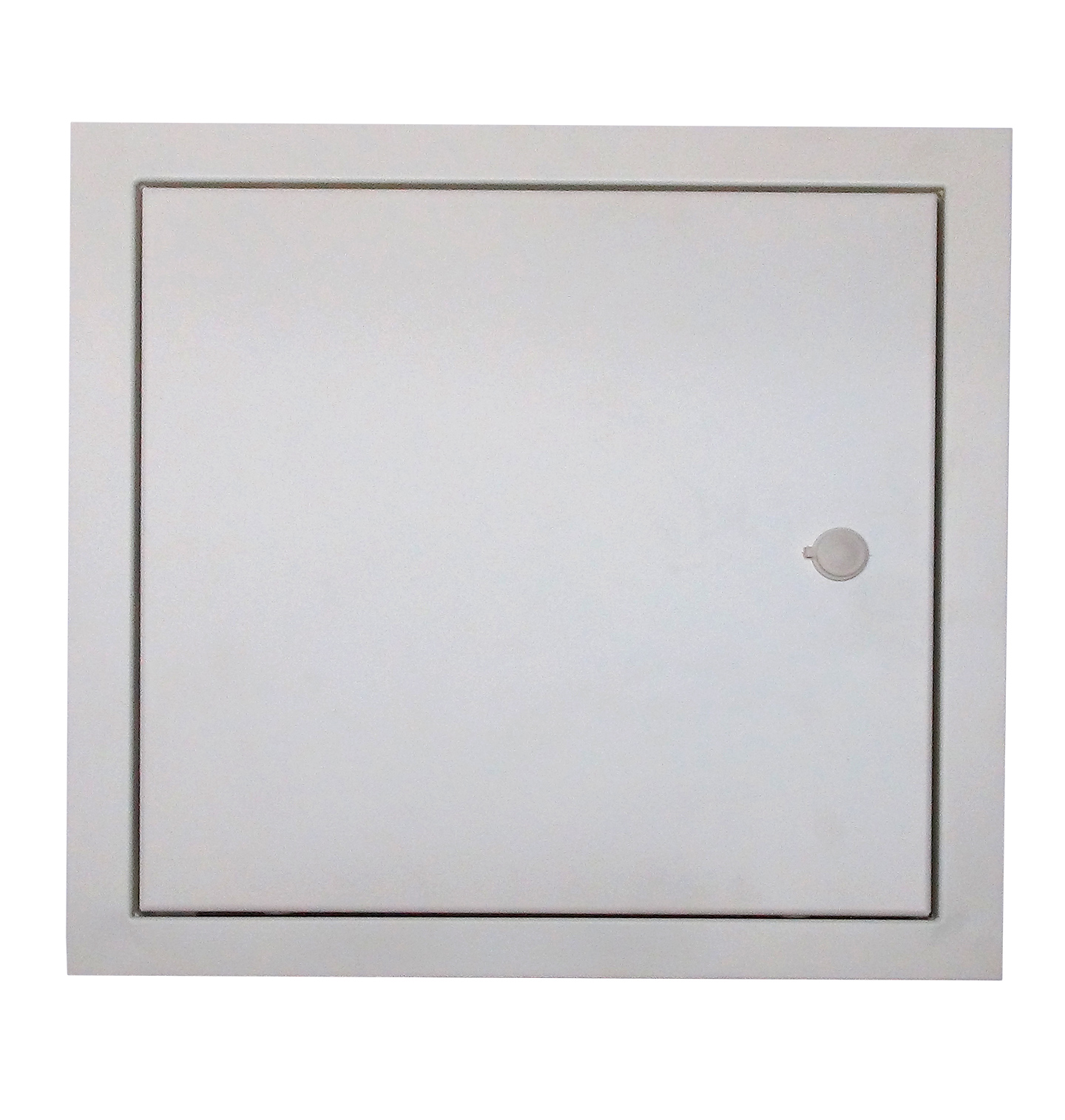

Metal Door Access Panel with Picture Frame

From £38.51ex VAT

Locking Options

Frame Size

Product details

Ceiling and Wall Access Door

Dispatched same day for next working day (Mon-Thur) delivery if ordered before 2:30pm. 12pm on Friday.

Our picture frames are designed to be screw fixed directly into a clear structural opening. The 25mm surround frame is ideal for retrofitting into existing walls after all finishing work has been completed. These panels are intended for internal use only and are suitable for drywall, plasterboard and masonry wall or ceiling finish.

Manufacture

Standard metal panels are manufactured from 1mm Zintec steel and finished in a white powder coating (RAL 9010 20% gloss). The flush metal door has a 25mm wide Picture Frame and a concealed pin hinge which is secured using a budget lock.

Available in a range of standard sizes up to 600 x 1200. We also offer custom manufacturing where the panel can be made to almost any specification, including air tight, acoustic rated, or even double leaf with a wide range of locking options. Call our sales team on (0)1922 711185 for more information.

Zintec steel metal door and 25mm Wide Picture Frame surround.
Supplied with a quarter turn lock and Key.
Door and Frame Powder Coated in RAL 9010 White, 20% Gloss.
Can be used as a wall access panel a ceiling access panel.
Manufactured from non-combustible materials.

Access Panels Sizes

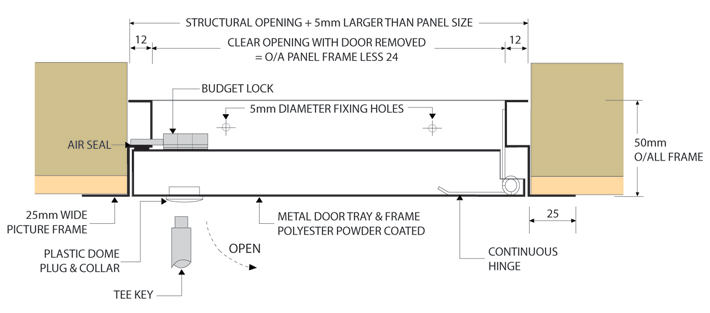

Our standard sizes are available for next day delivery (if ordered before 12pm). Please note the structural opening needs to be 5mm larger then the overall panel size. We also offer bespoke sizes, please contact us for a quote.

Sizes	Structural Opening	Opening with door removed	Hinged
300 x 300	305 x 305	276 x 276
450 x 450	455 x 455	426 x 426
550 x 550	555 x 555	526 x 526
600 x 600	605 x 605	576 x 576
600 x 900	605 x 905	576 x 876	Hinged Long Side
600 x 1200	605 x 1205	576 x 1176	Hinged Long Side
