FlipFix Metal Door Beaded Frame Access Panel - 1hr Fire Rated

FlipFix Fire Rated Access Panel with Metal Door Beaded Frame

Dispatched same day for next working day (Mon-Thur) delivery if ordered before 2:30pm. 12pm on Friday.

The Fire Rated Metal Door Beaded Frame is dual purpose 1 hours fire rated as standard with a FlipFix mechanism for easy installation.

Manufacture

This panel features a 20mm beaded frame surround metal door. It is fire rated with both wall and ceiling usages being certified and tested with a fire rating of up to 2 hours according to BS 476: Part 22: 1987. The FlipFix mechanism allows quick fixing without the need of any additional screws or fixings.

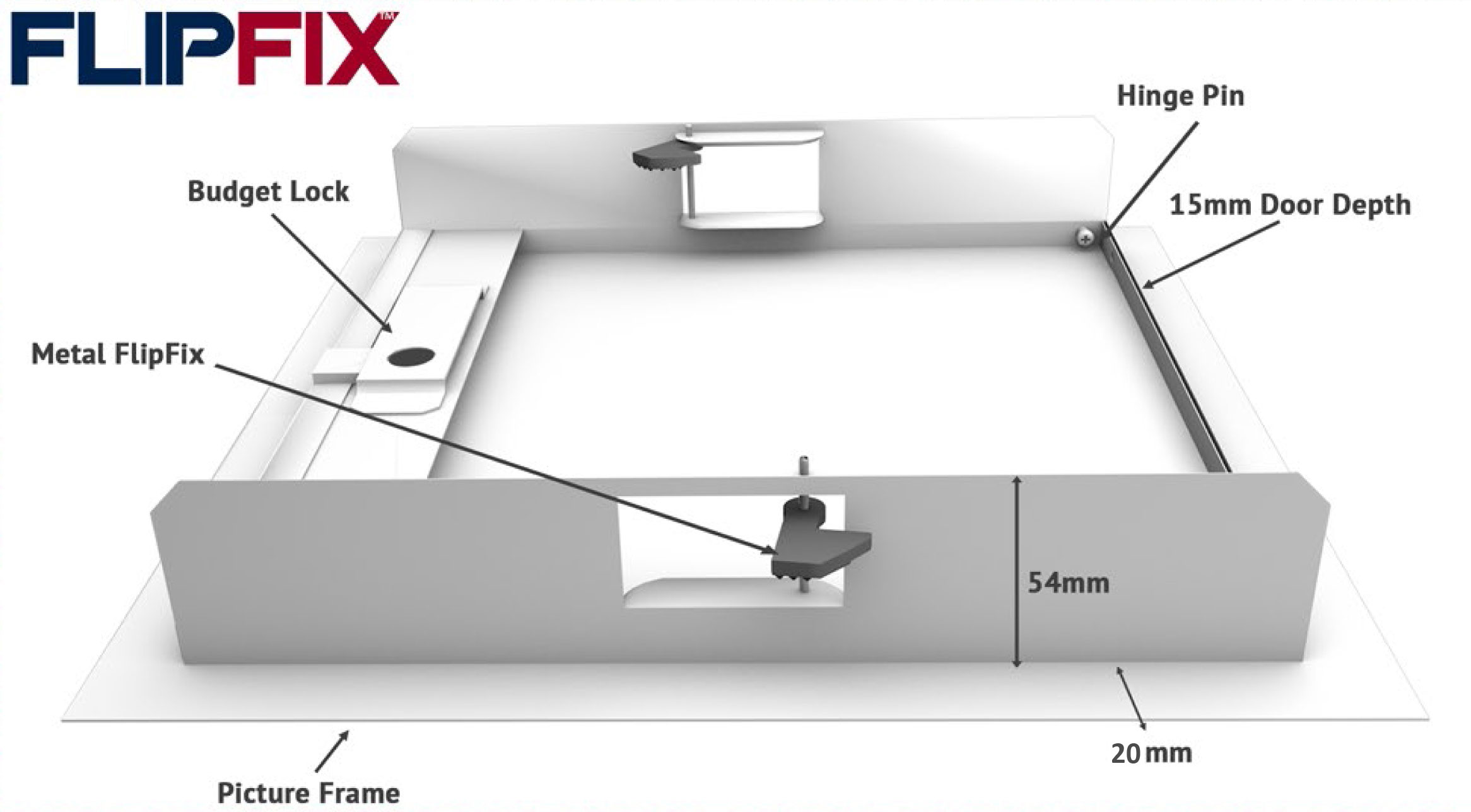

The flush metal door is fully demountable and uses a screw pin hinge which can be locked with a Budget Lock and a Plastic Tee Key. The door and frame is polyester powder coated in white RAL 9010, 30% Gloss. Manufactured from 0.9mm Zintec Steel. The panel depth is 54mm with a 20mm beaded frame and 15mm Door depth.

Access Panel Sizes

Please note: Structural opening needs to be 5mm larger then the listed size.
