Thermally Broken Roof Access Hatch

10% DISCOUNT USE SRHP25 AT CHECKOUT

PLEASE NOTE: Current Lead time is 5 - 7 Working Days

Surespan SRHP25 Aluminium access hatch incorporating a full 25mm thermally broken composite lid and upstand. The single leaf roof access hatch is complete with gas spring assisted opening to ensure the minimum of effort to open the double skinned aluminium lid.

Specification

The thermally broken lid incorporates an unbroken bubble and blade seal. Insulation comprises a sandwich of 25mm thick CFC and HCFC free Polyisocyanurate insulation which offers a U-Value of 0.78W/m²K to BS3958: Part 5: 1986. Note: Alternative no cost option for Non-combustible mineral wool installation rated at 1.14W/m²K for lid and upstand.

The hatch also incorporates a secure Stay Hold stay arm with smooth manual closing using grip handle to prevent against accidental closure.

The standard height 300mm upstand is filled with 25mm thick CFC and HCFC insulation. Aluminium curb liner fitted as standard.

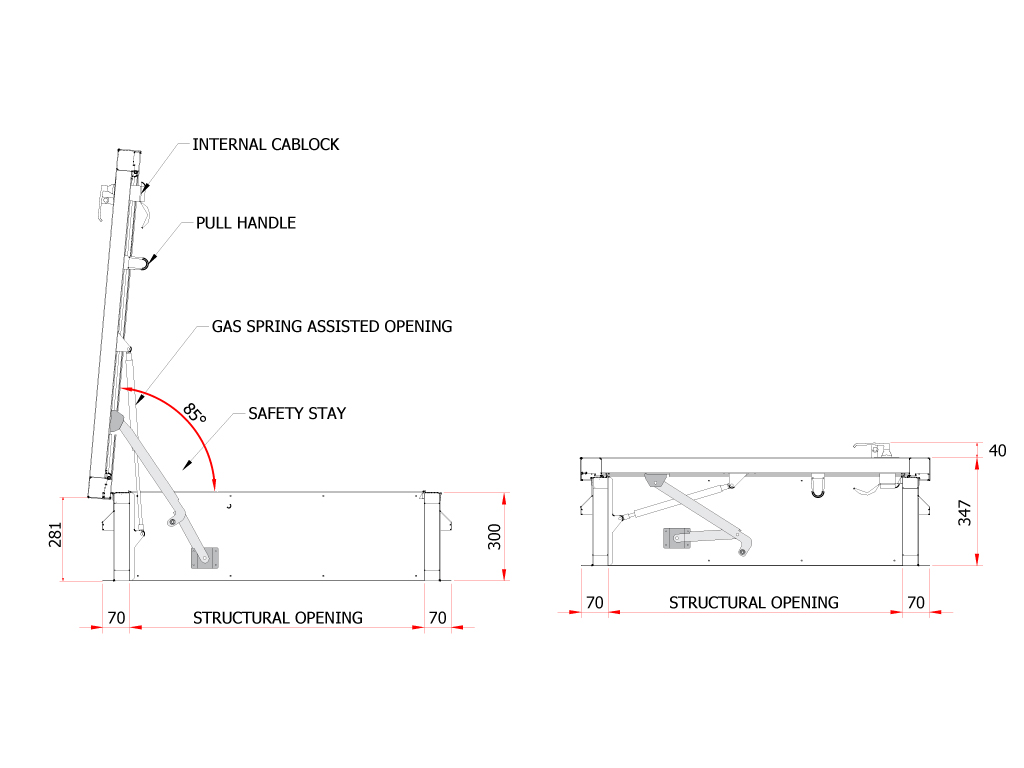

Section View

Dimensions

Structural Opening (LxW)	Overall Size Inc. Fixing Flange	Weight	Price
600 x 600	740 x 740	28kg	£650.00
750 x 750	890 x 890	34kg	£675.00
750 x 900	890 x 1040	38kg	£675.00
900 x 900	1040 x 1040	42kg	£725.00
1000 x 1000	1140 x 1140	47kg	£950.00
1350 x 750	1490 x 890	49kg	£1020.00

SRHP25 Roof Hatch Thermally Broken and Insulated
